J1708 Deutsch 6 Pin Female to Dual 6-Pin Male Splitter Y Cable
Specification
| 6-Pin J1708 female connector | equivalent of Deutsch HD16-6-12S-B010 |
| 6-Pin J1708 male connectors | equivalent of Deutsch HD10-6-12P |
| Wire | 20AWG, pure copper |
| Material of 6-Pin J1708 connectors | PA66 + glass fiber |
| Pin assignment or pin out | customized |
| Cable length | customized |
| Pins or terminals | copper, nickel-plated or gold-plated |
| Contact Resistance | 3 ohm max. |
| Insulation Resistance | 5M ohm min. |
| Working Temperature | −25℃ ~ +85℃ |
| Testing | 100% open, short and mis-wire testing |
| Testing Voltage | DC300V 5M ohm/10ms |
| Warranty | 1 year |

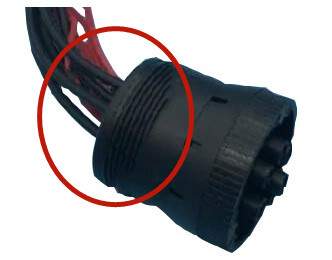

The 6-Pin J1708 female connector is with a locking ring. Rotating the locking ring to the right place after plugging to a 6-Pin J1708 male receptacle assures that the connector won’t come unplugged accidentally.
The end of Deutsch 6 Pin J1708 female and male connectors can be overmolded or not, according to your needs.
Overmolded
Not overmolded
Pin assignment or pin out
In most cases, all 6 pins of the J1708 male and female connectors are wired, so there are 6 wires of 20AWG in both cables. If there is no need for all 6 pins to be connected, the price can be lower because the raw material and labor cost is lower.
Application
The common application is to connect telematics or fleet management devices to older 6 pin J1708 round diagnostic port in medium and heavy duty vehicles model years from the early-to-mid-2000s.
This Deutsch 6 Pin J1708 Y Cable allows port relocation or connection of multiple devices. This Y cable is for older medium and heavy duty vehicles that have the J1708 6 pin diagnostic ports adjacent to the clutch pedal or in some other inconvenient location. It is also for vehicles that require multiple devices be connected to the J1708 6 pin diagnostic port. This Y cable splits the J1708 diagnostic port, allowing one J1708 port at the original location and the other connected to a telematics, fleet management device or trucking technology device.
Sending an inquiry
If you haven’t found or don’t have time to look for the J1939, OBD2 or J1708 cables, adapters or connectors in our website, feel free to let us know what J1939, OBD2 or J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any J1939, OBD2 or J1708 cables, adapters or connectors for you.
